AccuVap Concentration Module
Adding an AccuVap™ Concentration Module to your PrepLinc™ System eliminates the need for a separate bulk evaporation step when combined with processes like SPE or GPC Cleanup. Choose from two models: AccuVap™ Inline or AccuVap™ FLX. Both offer concentration of solvent directly from another process (GPC or SPE), but the FLX also allows offline concentration.
Unlike other semi-automated evaporation systems, the AccuVap™ will automatically solvent exchange and quantitatively transfer your sample to a GC vial ready for analysis. Powerful software controls heat and vacuum at every stage of the process to protect analyte recoveries. Programmable heated rinses eliminate carryover.
Evaporation Chamber
Enclosed evaporation chamber with three programmable zones for heat and vacuum.
Vacuum Control
Control vacuum settings for each chamber zone and for each stage to fine tune evaporation of solvent mixes.
Endpoint
Choose momentary dryness or adjustable endpoint as the concentration endpoint.
Add a standard or a keeper solution.
Exchanges
Program multiple solvent exchanges, adjusting heat and vacuum as the mix of solvent changes.
Transfer
Transfer portion of sample if quantitated in chamber or entire sample with rinses. Air purge of transfer lines.
AccuVap Method Editor
When you are concentrating samples, you need control. The PrepLinc™ AccuVap™ method editor gives you the ultimate control of your sample for maximum recovery of analytes.
The PrepLinc™ AccuVap™ Method Editor is full-featured, yet intuitive.
Parameters for each stage of the concentration process are clearly separated.
Solvents are programmed at software setup for easy recall when programming methods.
Heating rates and vacuum settings are adjustable on the fly for quick method development.
Configuration Options
Inline or FLX Model
Choose your AccuVap™ model based on intended uses. Consult the lists below to determine the model best suited for your lab.
AccuVap™ Inline
- GPC with Evaporation*
- SPE with Evaporation*
AccuVap™ FLX
- GPC with Evaporation*
- SPE with Evaporation*
- Evaporation Only
*Requires additional PL options
AccuVap EVS Evaporation System
The AccuVap EVS™ Evaporation System is a fully automated way to concentrate offline samples ranging in volume from a few to hundreds of milliliters of solvent. The AccuVap EVS™ can replace more manual evaporation methods like Kuderna-Danish, rotary evaporation and other semi-automated techniques.
Concentrate samples after soxhlet, accelerated solvent and liquid/liquid extractions.
Full automation for concentrating overnight.
Replaces rotary evaporation, Kuderna-Danish & most semi-automated techniques.
Delivers sample to a vial ready for analysis or additional processing.
Options for AccuVap
Solvent Recovery Module
Solvent Recovery Module
Solvent Recovery Module

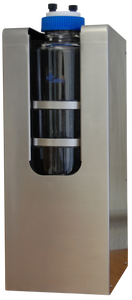

The SRM Condenser Module condenses solvent vapor and drains to a vessel for disposal or recycling. Collects up to 95% of solvent vapor.

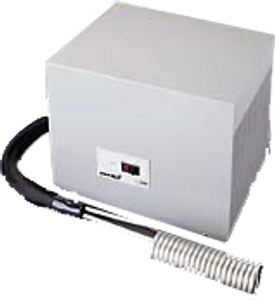

Immersion Chiller
Solvent Recovery Module
Solvent Recovery Module
Chiller options for SRM module.
140W at -30 deg C
